352

Electric threading machine

Threading machine mod. 352 can thread, cut and deburr metallic pipes from 1/8 up to 2”. Two versions are available: with automatic (352/A) die-head's opening. With adapter mod. 97 is possible to thread up 4”.

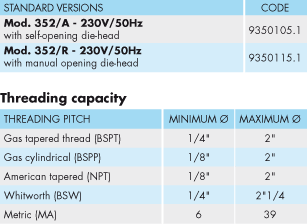

TECHNICAL FEATURES:
- Single-phase motor 230V-1500W/50Hz (110V on request)

- Die-head's speed: 40 RPM
- Die-head's hole: Ø 63
- Gear pump for chasers' lubrification
- Threading from 1/4 to 2” with one die-head
- Thread regulation on die-head
- Emergency stop-button
- Tools handwell operated
- Dimensions: lenght 450 mm, width 360 mm, height 330 mm
- Weight: kg. 35

ACCESSORIES SUPPLIED WITH MACHINE:
- Automatic opening die-head from 1/8 up 2” (code 000510.1)
- Manual opening die-head from 1/8 up 2” (code 000511.1)
- Cutter 1/8-2” (code 000536)
- Deburring tool 1/8-2” (code 000574.1)
- Stand (code 000575)
- 1 liter threading oil
- Set of chasers right handed BSPT 1/2-3/4
- Set of chasers right handed BSPT 1”-2”

OPTIONAL ACCESSORIES:

- BSPP chasers
- NPT chasers
- BSW chasers
- MA chasers
- HSS (for stainless steel pipes) chasers
- Manual opening die-head for left threading (code 000590)
- Left handed chasers
- Left handed chasers for stainless steel pipes (SX HSS)
