392-N

Electric threading machine

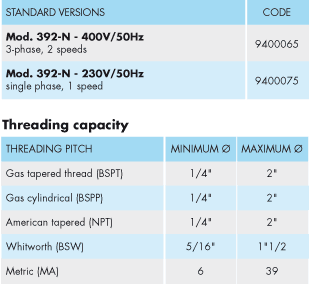

Mod. 392 could thread metallic pipe and solid bars from 1/4 up to 2' gas. This threading machine has a rotating head and a self-centering vice, that slides longitudinally and trasversally on ground steel guides for a pipe's coaxial feeding and locking into the die-head.

TECHNICAL FEATURES:
- Three-phases motor with 2 speeds 400V/50HZ/kW 1,9/1,4 - 2830/1400 RPM
- Single-phase motor 1 speed 230V/50HZ/kW 1,1 - 1435 RPM
- Motor with special voltage on request
- Control console and protective screen
- Die-head's speed 1°:25
- Die-head's hole: Ø 70 mm
- Vice-stroke: 170 mm
- Closed circuit for refrigeration and lubrification. Double filter tank for oil collection
- Dimensions: lenght 880 mm, width 330 mm, height without stand 380 mm, height with stand 950 mm
- Weight: kg. 95

ACCESSORIES SUPPLIED WITH MACHINE:
- Stand (code 000437)
- Automatic opening die-head (code 000468)
- BSPT chasers 1/2-3/4
- BSPT chasers 1-2
- 2 liters threading oil

OPTIONAL ACCESSORIES
- Trolley with tools' parcel shelf (code 000161)
- BSPP chasers
- NPT chasers
- BSW chasers
- MA chasers
- HSS chasers for threading stainless steel pipe
- Left handed automatic opening die-head
- Chasers for left handed threading
- Chasers for left handed threading of stainless steel pipes (HSS)
