Thread chasers die head to thread up to 2'.
Standard thread chasers to work left or right.

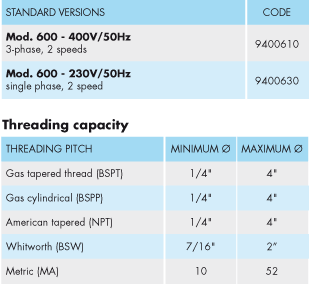

Electric threading machineThe model 600 threading machine is a machine made to thread tubes and metal solid bars. It is equipped with 2 rotating die heads and a self-centring rotating vice sliding on cylinder guides to coaxially lock and feed the tube in the chuck.
- Three-phase motor 400V / 50Hz 2/4 poles / kW 1,3 4 at rpm. 1450.
- Single phase motor in alternative current 230V / 50Hz kW 1,25 10 on capacitor MF 36 rpm. 1400.
- Incorporated gear pump to lubricate the thread chasers.
- Protection screen with micro-switch.
- Rpm rotating die head for 2' = 29 rpm and for 4' = 9 rpm.
- Rotating die head internal space for 2' = 76 mm and for 4' = 126 mm.
- Vice stroke 150 mm
- Dimensions: length 1050 mm (42 inches); width 800 mm (32 inches); height 1250 mm (50 inches).
- Weight 265 kg (583 lbs).
ACCESSORIES SUPPLIED WITH MACHINE:
- Rotating die head from 1/4' up to 2' GAS or from pitch 1,50 up to pitch 5 MA.
- Rotating die head from 2'1/2 up to 4' GAS.
- Thread chasers BSPT from 1' to 2' GAS (R).
- Thread chasers BSPT from 2'1/2 to 4' GAS (R).
- 5 liters (Aprox. 1,8 Gal.) can of threading oil.
- Rotating die head for 2' (left).
- Rotating die head for 4' (left).
- Threading chasers BSPP.
- Threading chasers NPT.
- Threading chasers BSW.
- Threading chasers MA.
- Threading chasers in HSS.
- Threading chasers (left).
- Threading chasers (left) in HSS.
