620

Electric threading machine

Mod. 620 is a machine suitable for threading metallic pipes and solid bars. The machine has a rotating head for the spindle's rotation in both sense and a self centering vice for pipe's coaxial feeding and locking into spindle.

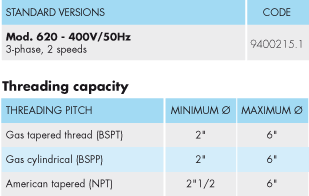

TECHNICAL FEATURES:
- Three-phases motor 2 speeds 400V/50Hz 2830-1420 RPM
- Die-head's tours: 9 RPM
- Die-head's hole: Ø 170 mm
- Vice stroke : 250 mm
- Unlimited thread's lenght
- Control console and protective screen
- Dimensions: lenght 1200 mm, width 690 mm, height without stand 800 mm; height with stand 1150 mm.
- Weight kg. 430.

ACCESSORIES SUPPLIED WITH MACHINE:
- Automatic opening die-head
- Right handed BSPT chasers 2-4 (code 000539)
- Right handed BSPT chasers 4'1/2-6'
- 5 liters threading oil

OPTIONAL ACCESSORIES
- Left handed manual opening die-head (code 000628)
- BSPP chasers
- NPT chasers
- Chasers for left handed threading
- Chasers for left handed threading of stainless steel pipes (HSS)
