392-L

Electric threading machine

The model 392-L can thread metallic pipes and solid bars from 1/4’ up to 2’ gas.
This threading machine is equipped with a ball bearing runner sliding rotating head and a self-centering vice which allow coaxial feeding and locking of the tube into the die-head, a capacious refrigeration oil collection tray and a shaving collection drawer.

TECHNICAL FEATURES:
- Three-phase motor with 2 speeds 400V/50Hz - kW 1,9/1,4 - 2830/1400 RPM
- Single-phase motor 1 speed 230V/50Hz - kW 1,1 - 1435 RPM
- Motor with special voltage on request
- Control console and protective screen
- Die-head’s speed 1∞:25
- Die-head’s hole: Ø 70 mm
- Die-head stroke: 270mm
- Closed circuit for refrigeration and lubrification. Double filter tank for oil collection
- Dimensions: lenght 770 mm, width 550 mm, height without stand 640 mm, height with stand 1300 mm
- Weight: kg. 175

ACCESSORIES SUPPLIED WITH MACHINE:
- Automatic opening die-head (code 000468.1)
- 2 liters of threading oil

OPTIONAL ACCESSORIES
- Trolley with tools and cabinet (code 0001440)

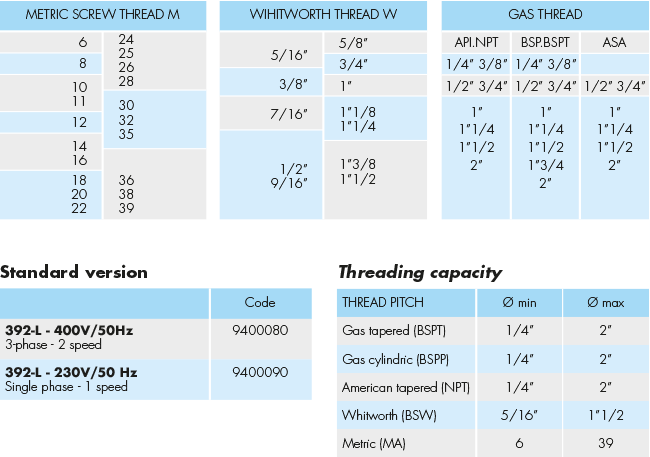

- BSPT thread chasers 1/2’ - 3/4’
- BSPT thread chasers 1’ - 2’
- BSPP thread chasers
- NPT thread chasers
- BSW thread chasers
- MA thread chasers
- HSS thread chasers for threading stainless steel pipe
- Left handed automatic opening die-head (code 000460.1)
- Thread chasers for left handed threading
- Thread chasers for left handed threading of stainless steel pipes (HSS)
