OB/85S
Portable hydraulic pipe bender
OB85/S hydraulic pipe bender is the samllest in its range of machines and also the easiest to handle. It is very powerful and is able to bend big diameter pipe with the minimum effort.TECHNICAL FEATURES
- Die-casted aluminium body and stainless steel body pump with double hydraulic circuit (kg. 2,3)
- High working range thanks to very long piston stroke
- Adjustable pump lever according to hand size
- Die-casted aluminium formers
- Galvanized steel counterformers with die-casted aluminium laterals for quick coupling

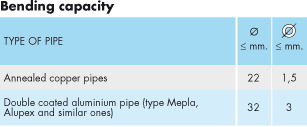

Bender Mod. OB85/S is perfect also for bending double coated aluminium pipes up to diam. 32 mm

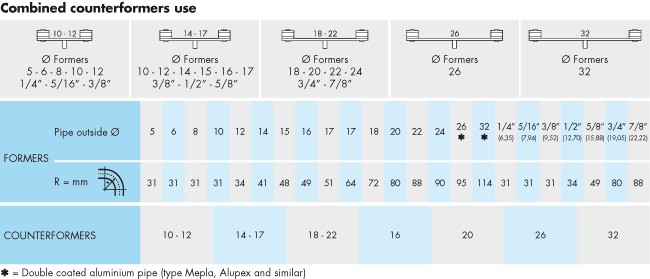

COUNTERFORMERS FOR QUICK COUPLING
These benders allow counterform quick coupling with a simple pressure, without using screws or bolts.
These benders allow counterform quick coupling with a simple pressure, without using screws or bolts.
KIT FOR EXECUTING OVERRUNNINGS
Special equipment (former + counterformer) to execute overrunnings of multi-coated pipes for the diam.16-20-26 and of copper pipes for the diam. 16 and 18. It can be fitted also on benders type OB/85S, OB2003 and MC 2005.
Special equipment (former + counterformer) to execute overrunnings of multi-coated pipes for the diam.16-20-26 and of copper pipes for the diam. 16 and 18. It can be fitted also on benders type OB/85S, OB2003 and MC 2005.

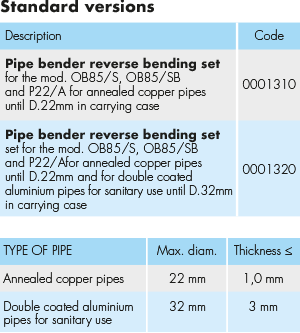

PIPE BENDER REVERSE BENDING SET
General features
Maximum bending angle 90°
- Applicable to the C.B.C. standard formers and counterformers
- Set supplied in a PVC case
- Ideal tools for performing on site bends and for special cases.
General features
Maximum bending angle 90°
- Applicable to the C.B.C. standard formers and counterformers
- Set supplied in a PVC case
- Ideal tools for performing on site bends and for special cases.

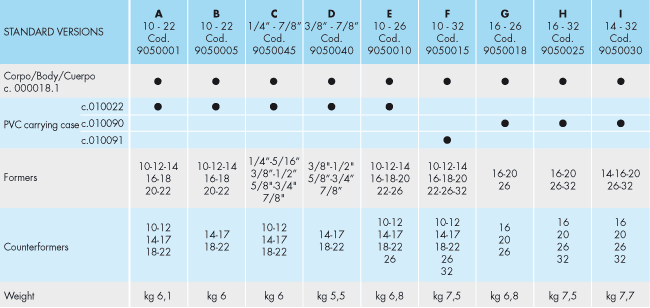

Plastic case for versions A-B-C-D-E for bending from 10 mm up to 26 mm.
Plastic case for version F for bending from 10 mm up to 32 mm.
Plastic case for versions G-H-I for bending from 14 mm up to 32 mm.

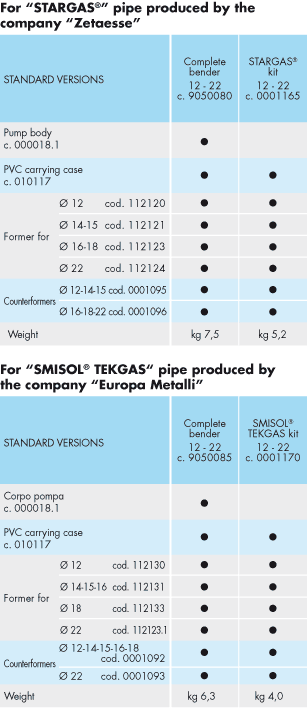

The portable hydraulic bender OB/85S is the ideal tool even to bend copper pipes specially coated by a special PE covering , made specifically for the passage of liquid and/or gaseous fuels up to diam. 22 mm.
