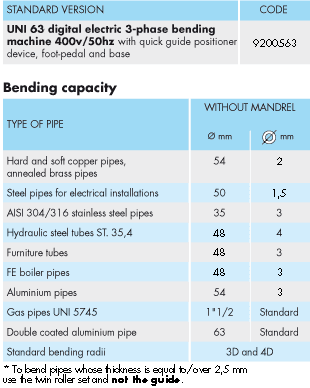

UNI 63

Digital electric 3-phase bending machine

Digital, electric, 3-phase bending machine to bend any kind of pipe, diameter and thickness. It has been conceived to realize and satisfy the various exigencies of operators in the plumbing field, nautical, hydraulics, industry and installations in general.
- Cast iron body based on structural steelwork
- asynchronous motor hp 1,5, 400v/50hz (different voltages on request)
- digital electronic unit with multilanguage microprocessor for programming, controlling and recovering the bending angle. it is capable of storing 50 bending programs with the possibility to select 9 sequential bending angles for each program.
- maximum bending angle 180°
- low tension printed circuit board (24v.)
- bending angle regulation
- electro-brake
- supplied with 1 interchangeable outlet shaft d.32 (code 544455); one reduced shaft (code 544454) optional.
- weight & dimensions: only machine kg. 120
- length: 740mm, width: 900mm, height: 1000mm
Reduced shaft for bending with radii less than 30 mm.
Shaft d.32 (square) for bending with standard radii
UNI 63, version complete with moving arm.
